SIEM Page

The SIEM page provides configuration settings for forwarding threat information to a SIEM service such as QRadar or Splunk. Prior to configuring this page, determine the IP address and Port for the SIEM server.

Follow the instructions to enable SIEM notifications.

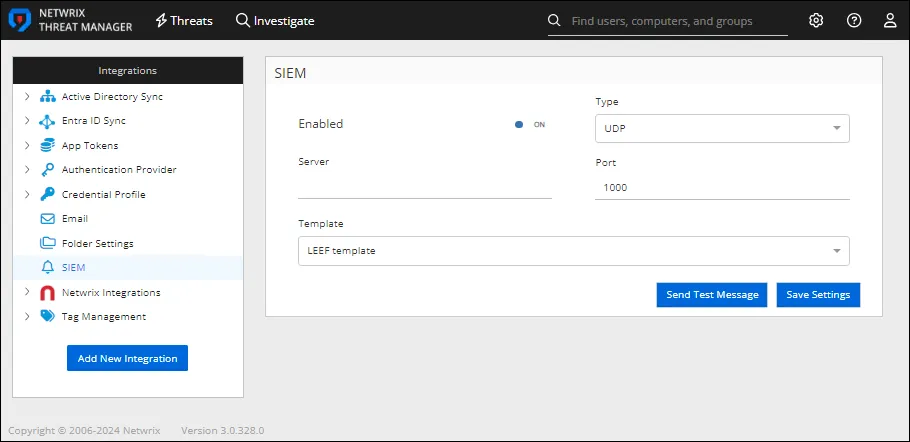

Step 1 – In the Integrations box, click SIEM. The SIEM window opens.

Step 2 – Enter the following information:

• Enabled – Sends threat configuration settings to the configured SIEM service if set to ON. The default is ON.

• Server – The IP address of the SIEM server. This field is blank and turned off by default.

• Type – Select a protocol type from the drop-down list to use when sending a Syslog message to a SIEM application:

  • UDP
  • TCP

• Port – The port of the SIEM server.

• Template – Select the desired template from the drop-down list

  • LEEF template – Threat data is sent to the SIEM application in the standard LEEF format

  • CEF template – Threat data is sent to the SIEM application in the standard CEF format

  • Custom template – Threat data is sent to the SIEM application in a customized format

    NOTE: Only one custom template can be implemented.

  • Notification template – Threat data is sent to the SIEM application in a basic notification format:

  %SYSLOG_DATE%|%HOST%|%COMPANY%|%PRODUCT%|%PRODUCT_VERSION%|%MESSAGE_TYPE%|%MESSAGE%

• Template Format – Selecting Custom template from the Template drop-down list enables this box. It displays the variables in Threat Manager that can be used to create a custom SIEM template:

  • %SYSLOG_DATE% – UTC timestamp of the SIEM message
  • %SYSLOG_DATE_ISO% – ISO-formatted UTC timestamp of the SIEM message
  • %HOST% – Threat Manager server hostname
  • %COMPANY% – Netwrix
  • %PRODUCT% – Threat Manager
  • %PRODUCT_VERSION% – Threat Manager version
  • %THREAT_TIME% – The date and time of the primary event associated with the threat
  • %THREATTYPE% – Threat type
  • %USERS% – Threat perpetrator(s)
  • %COMPUTERS% – Threat host (typically domain controller or file server)
  • %FILENAME% – File or share name for file events
  • %NEW_FILENAME% – New file name (for rename events)
  • %PROCESS% – Process name
  • %THREATID% – Threat ID
  • %THREATSUMMARY% – Summary of the threat
  • %THREATDEFINITION% – Definition of the threat
  • %THREATLEVEL% – Threat level of severity
  • %THREATPROPERTIES% – Threat properties JSON string
  • %THREATTIMEGENERATED% – Date and time the threat was generated (UTC)
  • %THREATTIMEGENERATEDTIME% – Time the threat was generated (UTC)
  • %THREATTIMEGENERATEDDATE% – Date the threat was generated (UTC)
  • %TARGETHOSTDOMAIN% – Active Directory domain of the target host
  • %TARGETHOSTTAGS% – Comma-delimited list of target host tags
  • %CLIENTDOMAIN% – Active Directory domain of the client host
  • %CLIENTTAGS% – Comma-delimited list of client host tags
  • %THREATPROCESSNAME% – Name of process running (e.g., for Unusal Process threat)
  • %THREATEVENTCOUNT% – The number of events related to the threat
  • %THREATEVIDENCE% – Threat evidence JSON string
  • %PERPETRATORSAMACCOUNTNAME% – SAMAccountName of the perpetrator
  • %PERPETRATORDISTINGUISHEDNAME% – Distinguished name of the perpetrator
  • %THREATUSERDISPLAYNAME% – Display name of the perpetrator
  • %THREATUSEREMAIL% – Email address of the perpetrator
  • %PERPETRATORDOMAIN% – Active Directory domain of the perpetrator
  • %PERPETRATORTAGS% – Comma-delimited list of perpetrator tags
  • %THREATUSERMANAGERDISPLAYNAME% –Display name of the manager of the perpetrator
  • %THREATUSERMANAGEREMAIL% – Email address of the manager of the perpetrator
  • %AFFECTEDUSERSAMACCOUNTNAME% – Comma-delimited list of affected User SAMAccount names
  • %AFFECTEDUSERDISPLAYNAME% – Comma-delimited list of display names of the affected user
  • %AFFECTEDUSERDOMAIN% – Active Directory domain of affected users
  • %AFFECTEDUSERTAGS% – Comma-delimted list of tags for affected users
  • %PRIMARYEVENTPATH% – Primary event path
  • %PRIMARYEVENTHOST% – Primary event host
  • %PRIMARYEVENTCLIENT% – Primary event client
  • %PRIMARYEVENTCLIENTID% – ID of the client of the primary event
  • %PRIMARYEVENTFROMIP% – IP address of the client of the primary event
  • %PRIMARYEVENTOPERATION% – Type of event that occurred for the primary event
  • %PRIMARYEVENTDOMAIN% – Active Directory domain of the primary event host
  • %PRIMARYEVENTTOIP% – IP address of the primary event target host
  • %PRIMARYEVENTTOMAC% – MAC address of the primary event target host

Step 3 – Click Send Test Message to send a test email to the configured email address.

Step 4 – Click Save Settings to save the configuration settings.

SIEM notifications are now configured.
