Impersonation Logins Analytic Type

The Impersonation Logins analytic type identifies multiple authenticated accounts from a single system within the specified time frame.

info

Configure a subset of accounts and/or servers to be monitored in order to avoid the excessive volume of event activity from monitoring all.

Impersonation Logins
Definition	Multiple authenticated accounts from a single system
Example	A perpetrator may wish to mask their activities by authenticating using alternate credentials. While logged in using their primary user ID, the perpetrator will authenticate against a network resource using an alternate ID; this is known as impersonation. Impersonation is often used by administrators, but not normally used by end-users. An attacker will often use impersonation to obtain increased rights to remote systems. This analytic identifies hosts that are using impersonated authentications.
Trigger	X different authenticated accounts from a single system in Y hours
Recommended Settings	Netwrix recommends configuring this analytic to trigger a hit if Threat Prevention monitors 3 different authenticated accounts from a single system in 2 hours.

Analytic Workflow

1. Configure the analytic policy
2. Enable the analytic policy
3. Enable alerting on incidents through the System Alerting Window.

See the Impersonation Logins Analytic Data Grid topic for information on event data collected per incident.

Configure Impersonation Logins Analytic Policy

Open the Impersonation Logins Analytic Policy in any of the following ways:

• Click Analytics in the left pane to launch the Analytics interface. Then click the gear icon for the analytic.
• Expand the Analytics node and click the desired analytic. On the analytic window, click the gear icon available in the top right corner.

The Configure Analytics window has two tabs:

• Settings – Where the analytic trigger is defined
• Policy – Where filters can be added, additional actions configured, a custom schedule set, and the policy enabled

Settings Tab

Set the Number of Accounts and the Interval Duration to trigger the incident. The interval duration is set for (hours:minutes) and is capped at 23:59. When the specified number of account credentials different from those used to log into the originating host have accessed services, applications, remote connections, etc. within the specified interval duration, it will trigger an incident record.

By default, authentication event data is cached in memory for 24 hours. When an incident is triggered, an incident record is saved to the database along with the events that triggered the incident. Raw authentication event data that did not contribute to an incident are purged from memory once they are more than 24 hours old.

Policy Tab

The Policy tab for configuring analytics consists of three sub-tabs:

• General tab – Configured the same way a regular policy’s General Tab is configured. The only exception is that the Name and Description are hard coded, and cannot be modified. The Tags field is disabled for analytics.

• Event Type tab – Configured the same way a regular policy’s Event Type Tab is configured. The only exception is that the Authentication Monitoring Event Type is hard coded, and the Success filter cannot be modified.

  • Optional: Scope the protocol to be monitored on the Authentication Protocol filter. If enabling the analytic on a domain controller, also scope the login type.

    note

    The Exclude failed authentications with ‘N-2’ passwords option requires a GPO within the organization be configured to ‘Enforce password history’ with a setting of a minimum of ‘3 passwords remembered’ or it will not have an effect.

  • Optional: – Scope the domains to be included in or excluded from monitoring on the Domains/Servers filter.

  • Optional: – Scope the accounts to include in or exclude from being monitored on the AD Perpetrator filter.

  • Optional: – Scope the servers to be included in or excluded from monitoring on the IP Addresses (from) filter, the IP Addresses (to) filter, the Hosts (from) filter, or the Hosts (to) filter.

    note

    Some authentication events may return only a host name (NetBIOS or FQDN), others may return only an IP address. It is recommended to take this into account when entering filter values.

• Actions tab – Configured the same way a regular policy’s Actions Tab is configured. The only exceptions are that the “Send to Event DB” and “Email Notifications” options are disabled. The event data collected by analytic policies are stored in memory until an incident is triggered. For the “Send Raw Data to SIEM” option, use caution, as this will send all event data not the triggered incident, which could be a large volume of data. To send notifications on incidents, use the System Alerting Window to configure Email and SIEM alerts.

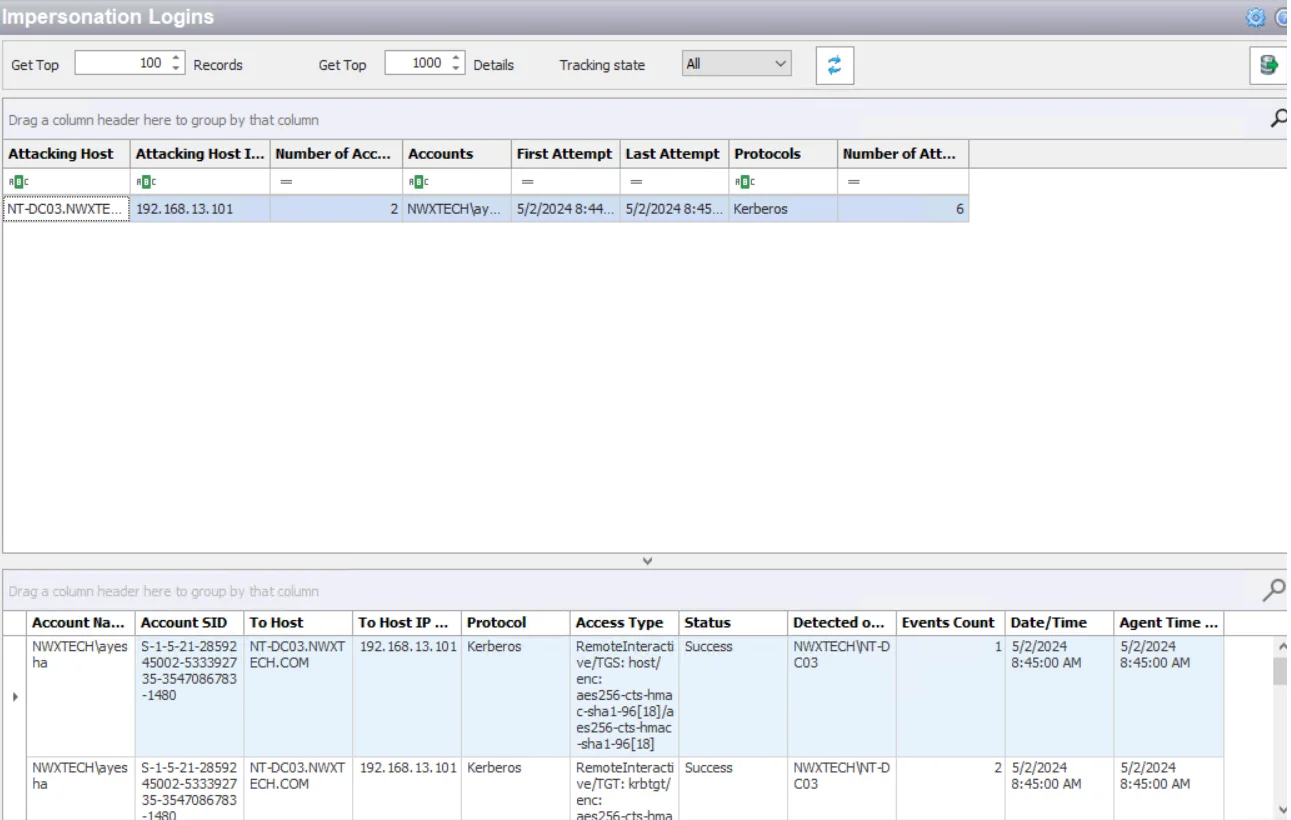

Impersonation Logins Analytic Data Grid

The data grid on the Impersonation Logins node lists one row per incident identified.

The data grid can be filtered according to the Event Tracker status: All, New, or Reviewed. See the Event Tracker Window topic for additional information.

The top data grid includes the following information for each incident:

• Attacking Host – Name of the originating host from which a user account logged in
• Attacking Host IP Address – IP address of the originating host
• Number of Accounts – Number of unique accounts that logged in from this host
• Accounts – Security principal of the account that triggered the event for the attempted impersonation. All accounts will be listed.
• First Attempt – Date timestamp of the first monitored event that triggered the incident. Hover over the data in this column to view the local time (of the Enterprise Manager) and UTC time simultaneously.
• Last Attempt – Date timestamp of the last event that triggered the incident. Hover over the data in this column to view the local time (of the Enterprise Manager) and UTC time simultaneously.
• Protocols – Protocol(s) used for the monitored operation
• Number of Attempts – Number of attempts monitored during the specified interval matching this rule

Select an incident in the top data grid to view information on the events that triggered the incident:

• Account Name – Security principal of the account that triggered the event for the attempted impersonation
• Account SID – Security Identifier of the account used in the event for the attempted impersonation
• To Host – Name of the target host
• To Host IP Address – IP address of the target host
• Protocol – Protocol(s) used for the monitored operation
• Access Type – Type of authentication, e.g. RDP, CIFS, etc.
• Status – Detailed information on the error generated by the event
• Detected on DC – Fully-qualified name of the domain controller that detected the event
• Events Count – Number of identical events that occurred in one minute
• Date/Time – Date timestamp of the monitored event. Hover over data in this column to view Agent time, Local time (of the Enterprise Manager), and UTC time simultaneously.
• Agent Time Logged – Timestamp for when the Agent detected the event. This can be different from the Enterprise Manager time (displayed in the Date/Time column) due to latency.

This data grid employs features for sorting, filtering, searching, and more. See the Data Grid Functionality topic for additional information.
