Investigate Filters

On the Investigate Interface, there are six filter categories that can be applied to the recent events available in the data grid. By default, no filters are applied. For the Policy filter, all enabled unprotected policies and any protected policies the current user has rights to view are selected, and the other filter categories are blank. Filters can be applied using any combination of the filter categories. Use the Refresh button to repopulate the data grid with the current information for the selected filter(s).

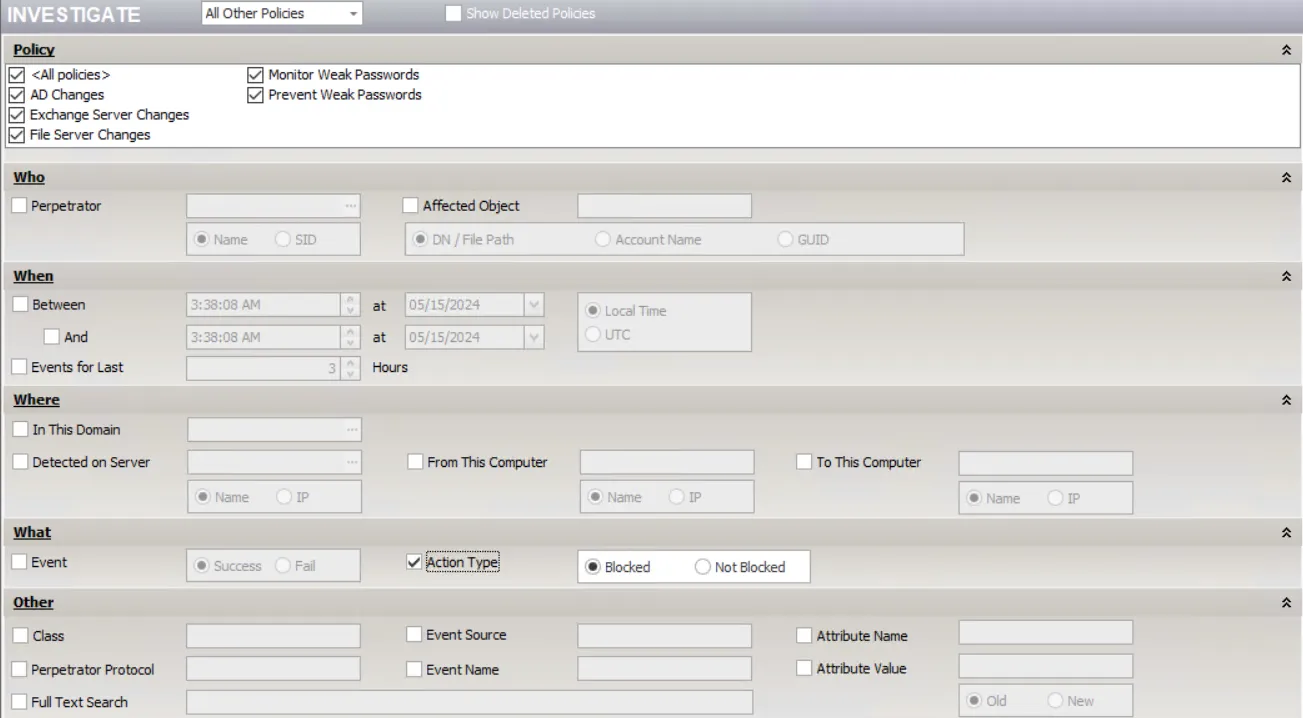

Investigate Interface - Filter Categories

Filter categories are discussed below.

Policy

To filter by Policy, check the checkboxes for the desired policy. Protected policies that the current user does not have rights to view are grayed-out.

  • All policies – Toggles on or off all available policies
  • Show Deleted Policies – Displays previously deleted policies in the Policy filter category. They are included in the filter. By default, event data from deleted policies is not included with the investigation results.

Who

To filter by Who, check the Perpetrator box to filter for a particular security principal committing the change and/or check the Affected Object box to filter for a particular object being affected by a change.

For the Perpetrator option, select the option button for either:

  • Name – Identify a perpetrator by name
  • SID – Identify a perpetrator by the Security Identifier

Then enter the who in the textbox or use the ellipsis (…) to open the Available Perpetrators window that displays perpetrators currently known within the database.

For the Affected Object option, select the option button for either:

  • DN / File Path – Identify an object by the distinguished name or file path
  • Account – Identify an object by the SAM account name
  • GUID – Identify an object by the globally unique identifier

Then enter the who in the textbox. Filter criteria can be a partial match.

When

Filtering by When provides several options, including the option between using Local Time or UTC time.

  • To filter from a specified date and time to the present, check the Between box and set the start time and date
  • To filter for everything before a specified date time, check the And box and set the end time and date
  • To filter for a specific time frame, check both the Between and And boxes, then set the start and end times
  • To filter for Events for Last [number] Hours, check this box and set the number of hours to be used as the filter

Where

To filter by Where, check the box(es) for the desired filter type(s):

  • In this Domain – Enter the [domain name] in the textbox or use the ellipsis (…) to open the Available Domains window that displays domains currently known within the database.

  • Detected on Server – Select the radio button for either Name or IP and then enter the server in the textbox. The ellipsis (…) can be used to open the Available Servers window that displays servers currently known within the database.

  • From This Computer – Select the radio button for either Name or IP and then enter the computer in the textbox

  • To This Computer – Select the radio button for either Name or IP and then enter the computer in the textbox

    Filter criteria can be a partial match

What

To filter by What, check the box(es) for the desired filter type(s):

  • Event – Select the option button for either Success or Fail
  • Action Type – Select the option button for either Blocked or Not Blocked

Other

To filter by Other, check the box(es) for the desired filter type(s):

  • Class
  • Perpetrator Protocol
  • Event Source
  • Event Name
  • Attribute Name
  • Attribute Value – Select the option button for either Oldor New and then enter the old or new value in the box

Filter criteria can be a partial match.

CAUTION: The Full Text Search is not driven by indexes. Unless other indexed criteria are selected, the full text search could result in a scan of the entire SQL database which could be very slow for large databases.

  • Full Text Search – Queries the entire SQL database for the entered attribute. If the attribute displays anywhere in the event, it is displayed in the data grid.

Click the arrow on the filter category header ribbon to expand or collapse the category. You can also clear all filters by clicking the Reset Filters button on the ribbon between the filter categories and the data grid. Filtered views can also be saved. See the Saved Investigations topic for additional information.
