LSASS Guardian – Monitor Event Type

Based on policy rules, the LSASS Guardian – Monitor event type generates an event when a process not in the ‘white list’ attempts to access the LSASS process. Access options include Write, Read, and Create Thread.

The event filters for the LSASS Guardian – Monitor event type are:

  • AD Perpetrator
  • Domains/Servers
  • Processes
  • Open Process Flags

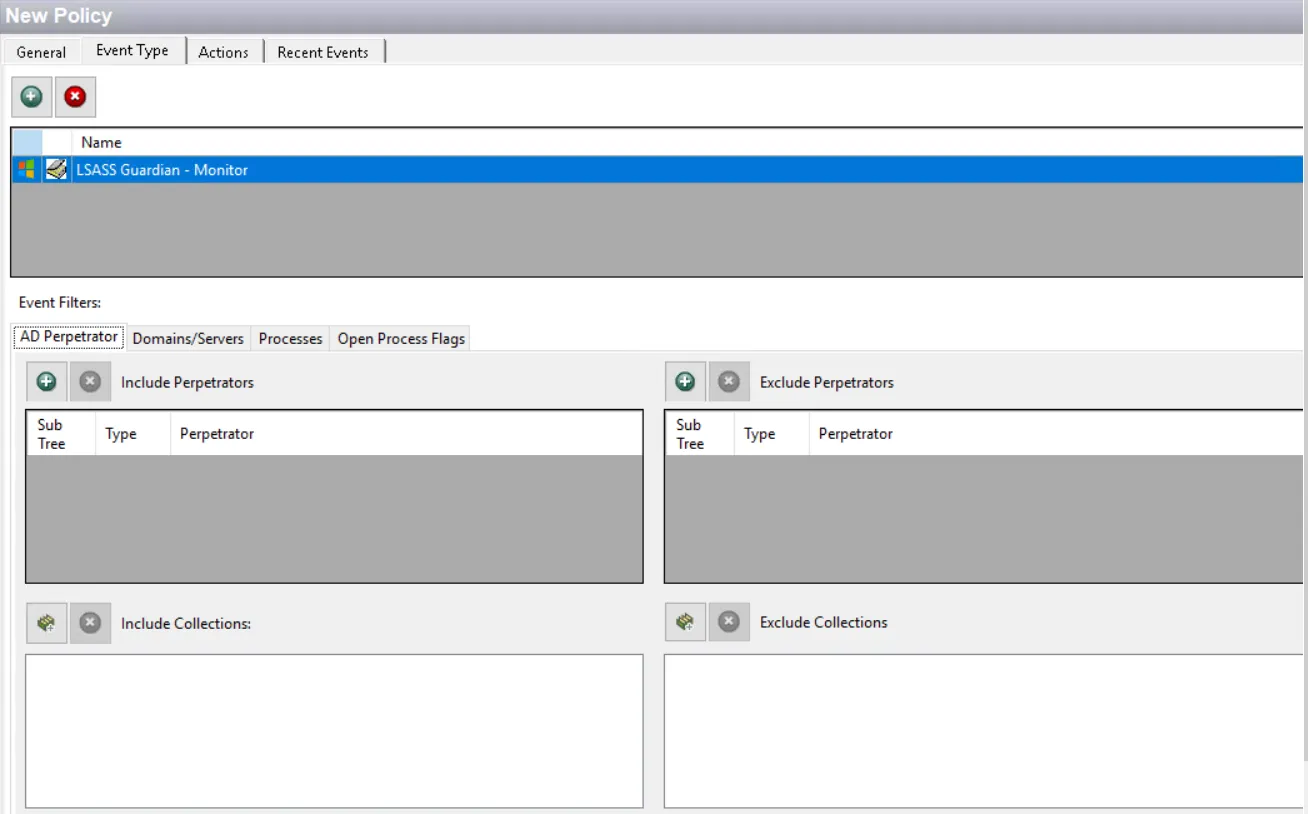

Policy window - LSASS Guardian – Monitor Event Type

Each filter tab acts like an "AND" statement for the filter. Any filter tab left blank is treated like an "ALL" for that filter set.

info

Add exclusion process filters for undesired processes that make changes to LSASS, e.g. third-party malware applications.

AD Perpetrator Filter​

Use the AD Perpetrator filter for monitoring to set the scope of the policy to only monitor specific security principals committing changes or to exclude specific security principals committing changes from being monitored.

Event Type - AD Perpetrator Monitoring filter

Use the buttons in the Include Perpetrators, Include Collections, Exclude Perpetrators, and Exclude Collections areas to edit the lists.

note

To enable a Dynamic Policy, use the Collection button to select the Dynamic Collection. See the Dynamic Collections topic for additional information.

Sub Tree

Sub-Tree option in event type filters

When contexts are added, a Sub-Tree checkbox displays. Check it to apply the filter to the parent and all child contexts. Uncheck it to apply the filter to the listed context only.

Domains/Servers Filter​

Use the Domains/Servers filter to set the scope of the policy to specific domains and/or servers or to exclude specific domains and/or servers.

Event Type - Domains/Servers Monitoring filter

Use the buttons in the Include and Exclude areas to edit the lists.

note

To enable a Dynamic Policy, use the Collection button to select the Dynamic Collection. See the Dynamic Collections topic for additional information.

Processes Filter​

Use the Processes filter to set the scope of the policy to only monitor specific processes or exclude specific processes from being monitored.

info

Add undesired processes that make changes to LSASS, e.g. third-party malware applications, to the Exclude Process list.

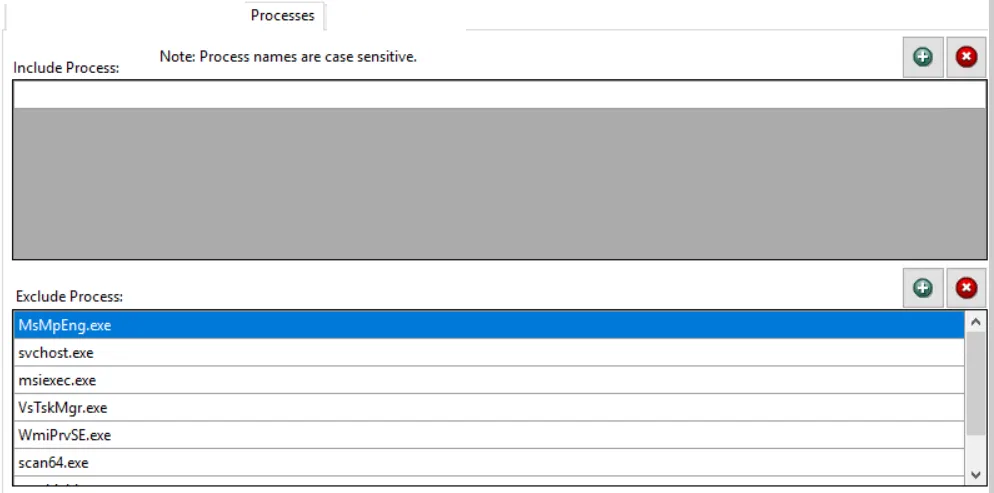

Processes Monitoring filter

Enter the process in the textbox for the option you want: Include Process or Exclude Process. Use the buttons in the respective areas to edit the lists.

  • The Process Add (+) button adds a textbox to the list to add an additional process.
  • The Remove (x) button deletes the selected items from that box.
warning

In a production environment, only exclude processes using the Exclude Process area. While there is an option to include processes, it isn't recommended in a policy that is monitoring a production environment. Adding a process in the Include Process area limits the policy to only monitoring that process. Unknown malicious processes wouldn't be monitored by the policy. In a sandbox environment, the Include Process option can be useful for testing/capturing the LSASS activity for specific processes to see what access they are requesting.

Open Process Flags Filter​

Use the Open Process Flags filter to set the scope of the policy for requested handles that would maliciously impact LSASS.

openprocessflagsmonitoring

Check the box to select the process flags to be monitored. This will trigger an event if the request for an LSASS handle contains one or more of the selected process flags.

  • PROCESS_VM_WRITE – Select this checkbox to write to memory in a process
  • PROCESS_CREATE_THREAD – Select this checkbox to create a thread
  • PROCESS_VM_READ – Select this checkbox to report if the calling process, such as an application, wants to read LSASS memory
    • A typical use case for this is the creation of an LSASS dump file, since read rights are required to create a dump file of the process.
    • Uncheck this checkbox to not generate an event if the calling process, such as an application, requests LSASS memory read access.
info

Leave these filters enabled. Don't deselect these options.
