Navigate the Active Directory App for QRadar

The Netwrix Active Directory App for QRadar (Active Directory tab) contains several predefined dashboards:

  • About
  • Active Directory (Overview)
  • AD Changes
  • Authentication Attacks
  • GPO Monitoring
  • Administrator Auditing
  • LDAP
  • Policy Reporting
  • User Investigation
  • Host Investigation.

There is also a Settings interface for configuring the QRadar SEC token.

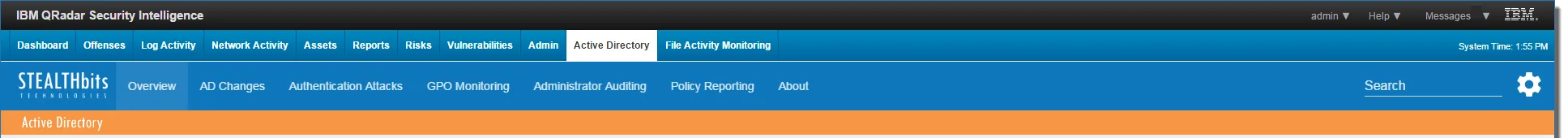

Active Directory App for QRadar - Top Ribbon

The User Investigation and Host Investigation dashboards only appear when a search is conducted. This can be done by clicking a hyperlink in the Perpetrator, Affected Object (when it is a user account), Source IP, or Destination IP columns of a table card. Alternatively, type the complete user name or host IP address in the Search box on the right side of the navigation bar.

Progress Bar​

When a search using a time interval longer than twelve (12) hours is initiated, the database query is broken into multiple mini-queries. A progress bar will appear in the bottom left of the screen that fills up as each query is completed. The progress bar will automatically reappear if it is clicked on.

Table Card Features​

Dashboards have several cards with a tabular format. Each of these cards have the following features:

  • Only five (5) pages of data will be loaded at a time. Applying the Search or Sort features or moving beyond the five ‘loaded’ pages will result in a “Processing” banner being temporarily displayed over the table while the server is directly queried for the necessary data.

  • Search data entries for all columns (except the Timestamp and Event Count columns) by typing in the Search box in the upper-right corner of the card.

    • Any entries with a match will remain in the table while all non-matching entries will be filtered out.
    • Total number of entries “Showing” will adjust for the filtered total.

  • Sort can be applied to one column at a time by clicking on the desired column header.

  • Show 10, 25, 100, or All entries in the table. Only visible entries can be exported.

  • Result data currently visible in the table can be exported from the dashboard:

    • Copy – Copy to clipboard in order to paste to another application
    • CSV – Export to a Comma Separated Value file
    • Excel – Export to an Excel Workbook file
    • Print – Send currently displayed table to printer

Graph Card Features​

Dashboards have several cards with a graphical format. Each of these cards have the following features:

  • Graph parts can be toggled on and off by clicking on individual elements in the legend
